从登录开始

添码座原创大约 5 分钟杂项Spring Security杂项Spring Security

Spring Security是一个重量级的RBAC权限管理框架，当SpringMVC还是主流开发框架的时候，因为它的配置比较繁琐，所以事实上Shiro用得更多。

但Springboot给Spring Security提供了更友好地配置方式，所以Spring Security又重新被重视起来。

Spring Security的核心功能主要就是三个。

  • 认证（Who）

  • 授权（What）

  • 防伪

Spring Security本质上是由一组Filter（过滤器）组成的FilterChain（过滤器链），FilterChain中的每个Filter都专注于自身的职责，组合在一起实现所有与权限相关的功能。

先从登录功能开始。

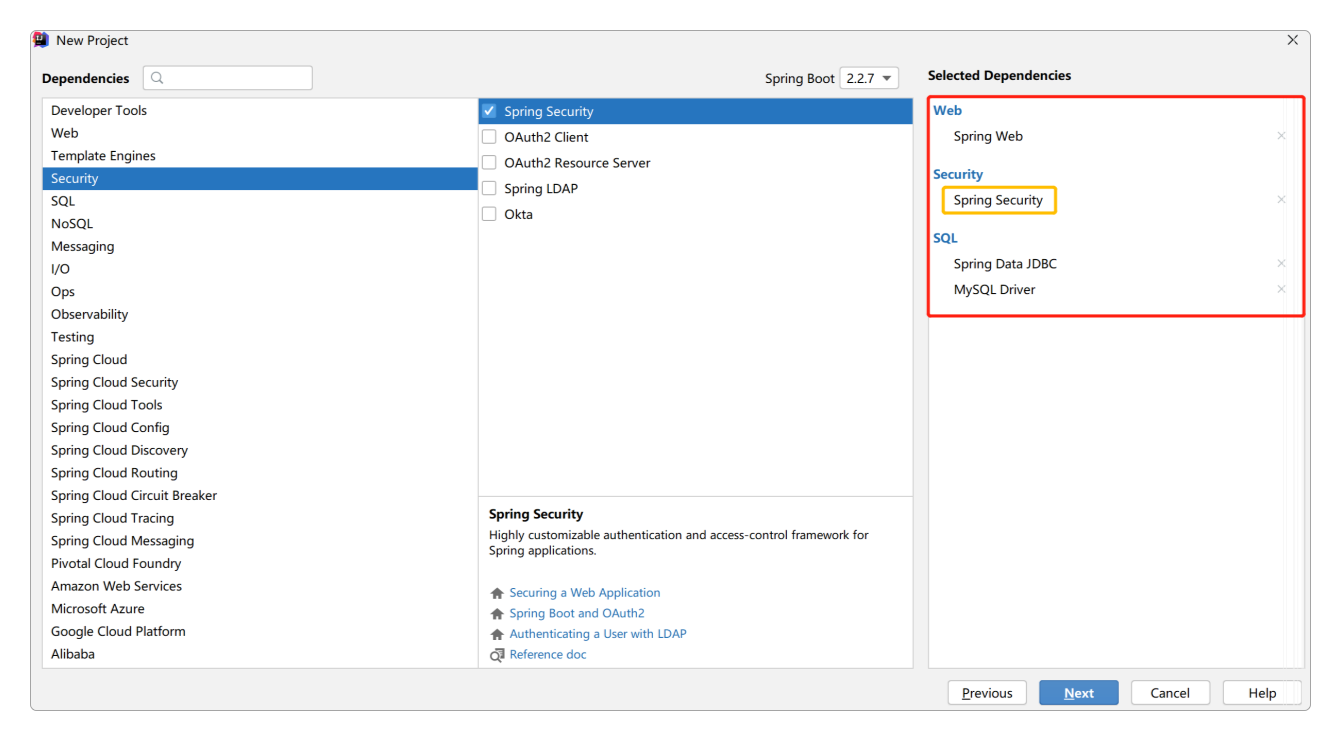

在IDEA上创建一个新的Springboot项目。

创建Springboot项目
创建Springboot项目

然后创建需要用到的相关数据表。

DROP TABLE IF EXISTS sys_user;
CREATE TABLE sys_user  (
  id int(11) NOT NULL AUTO_INCREMENT,
  username varchar(255) NOT NULL,
  password varchar(255) NOT NULL,
  createtime datetime NOT NULL,
  updatetime datetime NOT NULL,
  PRIMARY KEY (id)
) ENGINE = InnoDB CHARSET = utf8mb4 COMMENT='用户表';


DROP TABLE IF EXISTS sys_role;
CREATE TABLE sys_role  (
  id int(11) NOT NULL AUTO_INCREMENT,
  name varchar(255),
  createtime datetime NOT NULL,
  updatetime datetime NOT NULL,
  PRIMARY KEY (id)
) ENGINE = InnoDB CHARSET = utf8mb4 COMMENT='角色表';

DROP TABLE IF EXISTS sys_user_role;
CREATE TABLE sys_user_role  (
  userid int(11) NOT NULL,
  roleid int(11) NOT NULL,
  createtime datetime NOT NULL,
  updatetime datetime NOT NULL,
  PRIMARY KEY (userid, roleid)
) ENGINE = InnoDB CHARSET = utf8mb4 COMMENT='用户角色表';

-- 初始化数据
INSERT INTO sys_user VALUES (1, 'admin', '123456', CURRENT_TIMESTAMP, CURRENT_TIMESTAMP);
INSERT INTO sys_user VALUES (2, 'manager', '123456', CURRENT_TIMESTAMP, CURRENT_TIMESTAMP);
INSERT INTO sys_user VALUES (3, 'employee', '123456', CURRENT_TIMESTAMP, CURRENT_TIMESTAMP);
INSERT INTO sys_role VALUES (1, 'ROLE_ADMIN', CURRENT_TIMESTAMP, CURRENT_TIMESTAMP);
INSERT INTO sys_role VALUES (2, 'ROLE_MANAGER', CURRENT_TIMESTAMP, CURRENT_TIMESTAMP);
INSERT INTO sys_role VALUES (3, 'ROLE_EMPLOYEE', CURRENT_TIMESTAMP, CURRENT_TIMESTAMP);
INSERT INTO sys_user_role VALUES (1, 1, CURRENT_TIMESTAMP, CURRENT_TIMESTAMP);
INSERT INTO sys_user_role VALUES (2, 2, CURRENT_TIMESTAMP, CURRENT_TIMESTAMP);
INSERT INTO sys_user_role VALUES (3, 3, CURRENT_TIMESTAMP, CURRENT_TIMESTAMP);

修改pom.xml文件。

<dependency>
	<groupId>org.springframework.boot</groupId>
	<artifactId>spring-boot-starter-web</artifactId>
	<!-- 加入exclusions -->
	<exclusions>
		<exclusion>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-logging</artifactId>
		</exclusion>
	</exclusions>
</dependency>

<!-- 加入commons-lang3和fastjson -->
<!-- apache commons -->
<dependency>
	<groupId>org.apache.commons</groupId>
	<artifactId>commons-lang3</artifactId>
</dependency>
<!-- alibaba -->
<dependency>
	<groupId>com.alibaba</groupId>
	<artifactId>fastjson</artifactId>
	<version>1.2.61</version>
</dependency>

<!-- 去掉spring-boot-starter-test和spring-security-test -->

增加application.properties配置项。

spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.url=jdbc:mysql://localhost:3306/test?useUnicode=true&characterEncoding=UTF-8&useSSL=false&serverTimezone=UTC
spring.datasource.username=root
spring.datasource.password=123456

可以用JDBC或者MyBatis作持久化，这里用的是JDBC。

package com.xiangwang.vmall.dao;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.dao.DataAccessException;
import org.springframework.dao.DuplicateKeyException;
import org.springframework.jdbc.core.JdbcTemplate;
import org.springframework.jdbc.core.RowMapper;
import org.springframework.lang.Nullable;
import org.springframework.stereotype.Component;
import java.util.List;

/**
 * MySQLDao
 *
 */
@Component
public class MySQLDao<T> {
	@Autowired
	private JdbcTemplate jdbcTemplate;

	// 创建数据
	public int create(final String sql, final @Nullable Object... args) throws Exception {
		try {
			if (1 <= jdbcTemplate.update(sql, args)) {
				return 0;
			}
			return -1;
		} catch (DuplicateKeyException e) {
			e.printStackTrace();
			throw new DuplicateKeyException("data duplicate exception");
		} catch (DataAccessException e) {
			e.printStackTrace();
			throw new RuntimeException("create data exception");
		}
	}

	// 查询数量
	public Integer count(final String sql, final Object[] args) {
		try {
			return jdbcTemplate.queryForObject(sql, args, Integer.class);
		} catch (DataAccessException e) {
			e.printStackTrace();
		}
		return null;
	}

	// 查询单条数据
	public Object findOne(final String sql, final RowMapper<?> rowMapper, final @Nullable Object... args) {
		try {
			List<?> list = jdbcTemplate.query(sql, rowMapper, args);
			if (null != list && list.size() > 0) {
				return list.get(0);
			}
		} catch (DataAccessException e) {
			e.printStackTrace();
		}
		return null;
	}

	// 获得列表
	public List<?> find(final String sql, final RowMapper<?> rowMapper, final @Nullable Object... args) {
		try {
			List<?> list = jdbcTemplate.query(sql, rowMapper, args);
			if (null != list && 0 != list.size()) {
				return list;
			}
		} catch (DataAccessException e) {
			e.printStackTrace();
		}
		return null;
	}

	// 更新或删除数据
	public boolean update(final String sql, final @Nullable Object... args) throws Exception {
		try {
			return 0 <= jdbcTemplate.update(sql, args);
		} catch (DataAccessException e) {
			e.printStackTrace();
			throw new RuntimeException("update or remove object exception");
		}
	}
}

创建实体类（仅以user类为例）。

package com.xiangwang.vmall.entity;

import com.fasterxml.jackson.annotation.JsonFormat;
import com.fasterxml.jackson.annotation.JsonIgnore;
import org.springframework.jdbc.core.RowMapper;
import java.io.Serializable;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.util.Date;

/**
 * 用户entity
 *
 */
public class SysUser implements Serializable, RowMapper<SysUser> {
    private static final long serialVersionUID = -1214743110268373599L;

    private int id;

    private String username;

    private String password;

    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss", timezone = "GMT+8")
    protected Date createtime;

    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss", timezone = "GMT+8")
    protected Date updatetime;

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    @JsonIgnore
    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public Date getCreatetime() {
        return createtime;
    }

    public void setCreatetime(Date createtime) {
        this.createtime = createtime;
    }

    public Date getUpdatetime() {
        return updatetime;
    }

    public void setUpdatetime(Date updatetime) {
        this.updatetime = updatetime;
    }

    @Override
    public SysUser mapRow(ResultSet result, int i) throws SQLException {
        SysUser user = new SysUser();
        user.setId(result.getInt("id"));
        user.setUsername(result.getString("username"));
        user.setPassword(result.getString("password"));
        user.setCreatetime(result.getTimestamp("createtime"));
        user.setUpdatetime(result.getTimestamp("updatetime"));
        return user;
    }
}

创建三个服务类，分别是用户、角色和用户角色。

/**
 * 用户Service
 *
 */
@Service
public class UserService {
    @Autowired
    private MySQLDao mySQLDao;

    public Integer count() {
        String sql = "SELECT COUNT(id) FROM sys_user;";
        return mySQLDao.count(sql, new Object[] {});
    }

    public int save(String username, String password) throws Exception {
        String sql = "INSERT INTO sys_user(username, password) VALUES (?, ?);";
        return mySQLDao.create(sql, username, password);
    }

    public SysUser getById(int id) {
        String sql = "SELECT id, username, password, createtime, updatetime FROM sys_user WHERE id = ?";
        return (SysUser) mySQLDao.findOne(sql, new SysUser(), id);
    }

    public SysUser getByName(String username) {
        String sql = "SELECT id, username, password, createtime, updatetime FROM sys_user WHERE username = ?";
        return (SysUser) mySQLDao.findOne(sql, new SysUser(), username);
    }

    public List<SysUser> getAll() {
        String sql = "SELECT id, username, password, createtime, updatetime FROM sys_user";
        return mySQLDao.find(sql, new SysUser());
    }
}


/**
 * 角色Service
 *
 */
@Service
public class RoleService {
    @Autowired
    private MySQLDao roleDao;

    public void save(String name) throws Exception {
        String sql = "INSERT INTO sys_role(name) VALUES (?);";
        roleDao.create(sql, name);
    }

    public SysRole getById(int id) {
        String sql = "SELECT id, name, createtime, updatetime FROM sys_role WHERE id = ?";
        return (SysRole) roleDao.findOne(sql, new SysRole(), id);
    }

    public SysRole getByName(String name) {
        String sql = "SELECT id, name, createtime, updatetime FROM sys_role WHERE name = ?";
        return (SysRole) roleDao.findOne(sql, new SysRole(), name);
    }

    public List<SysRole> getAll() {
        String sql = "SELECT id, name, createtime, updatetime FROM sys_role";
        return roleDao.find(sql, new SysRole());
    }

    public List<SysRole> getByUserId(int userid) {
        String sql = "SELECT r.id, r.name, r.createtime, r.updatetime " +
                "FROM sys_role AS r, sys_user_role AS ur, sys_user AS u " +
                "WHERE u.id = ? AND u.id = ur.userid AND ur.roleid = r.id";
        return (List<SysRole>) roleDao.findOne(sql, new SysRole(), userid);
    }
}


/**
 * 用户角色Service
 *
 */
@Service
public class UserRoleService {
    @Autowired
    private MySQLDao mySQLDao;

    public void save(int userid, int roleid) throws Exception {
        String sql = "INSERT INTO sys_user_role(userid, roleid) VALUES (?, ?);";
        mySQLDao.create(sql, userid, roleid);
    }

    public List<SysUserRole> getByUserId(int userid) {
        String sql = "SELECT userid, roleid, createtime, updatetime FROM sys_user_role WHERE userid = ?";
        return mySQLDao.find(sql, new SysUserRole(), userid);
    }

    public List<SysUserRole> getByRoleId(int roleid) {
        String sql = "SELECT userid, roleid, createtime, updatetime FROM sys_user_role WHERE roleid = ?";
        return mySQLDao.find(sql, new SysUserRole(), roleid);
    }

    public SysUserRole getById(int userid, int roleid) {
        String sql = "SELECT userid, roleid, createtime, updatetime FROM sys_user_role WHERE userid = ? AND roleid = ?";
        return (SysUserRole) mySQLDao.findOne(sql, new SysUserRole(), userid, roleid);
    }
}

创建控制器类。

/**
 * 登录Controller
 *
 */
@RestController
public class LoginController {
    @GetMapping("/")
    public String index() {
        final String username = SecurityContextHolder.getContext().getAuthentication().getName();
        System.out.println("当前登录用户：" + username);

        return "SUCCESS";
    }

    // 登录
    @PostMapping("/login")
    public String login(String username, String password) {
        System.out.println("当前登录用户：" + username);

        return "SUCCESS";
    }

    // 登出
    @GetMapping("/logout")
    public String logout(String username) {
        System.out.println("登出用户：" + username);

        return "SUCCESS";
    }
}

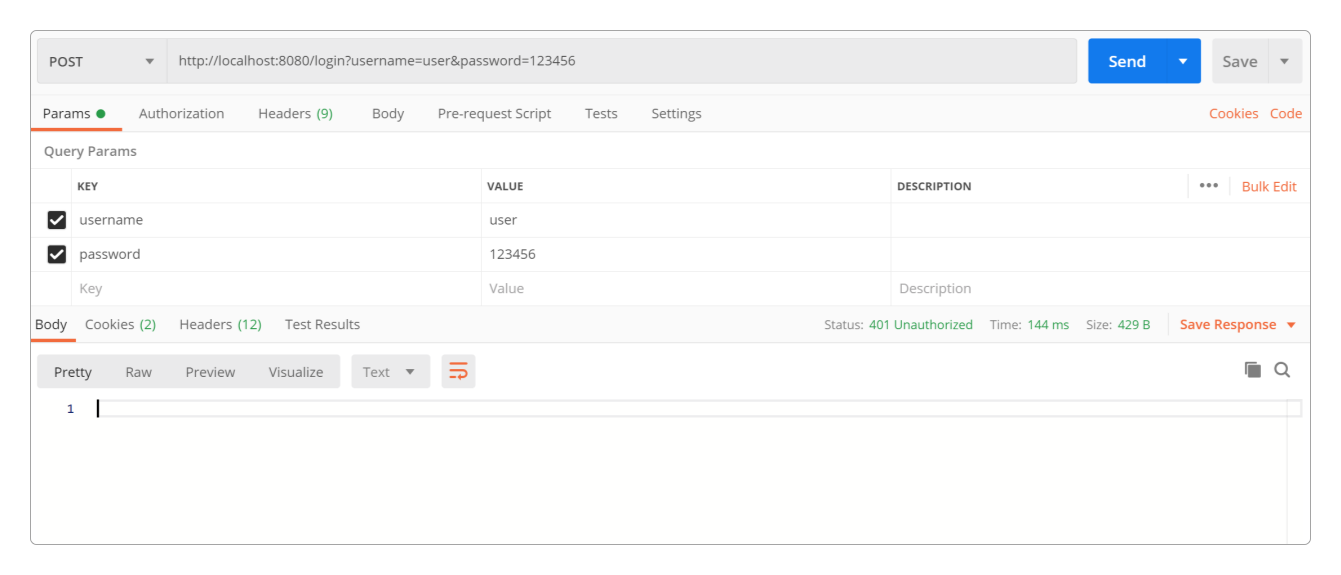

启动服务，然后用Postman访问接口。

使用Postman测试
使用Postman测试

调用/login?username=user&password=123456接口之后，发现什么都没有显示。

这是因为还没有配置Spring Security。
