用Groovy生成模式对象

添码座原创大约 12 分钟案例大数据风控案例大数据风控FlinkFlink-CEPNondeterministic Finite AutomatonGroovy

为什么用Groovy

Flink-CEP的底层是基于Non-deterministic Finite Automaton（NFA，非确定有限自动机）构建的，它是一种用来定义和描述不同状态转换过程的正则（表达式）语言。

Flink-CEP正是通过它实现的模式匹配。

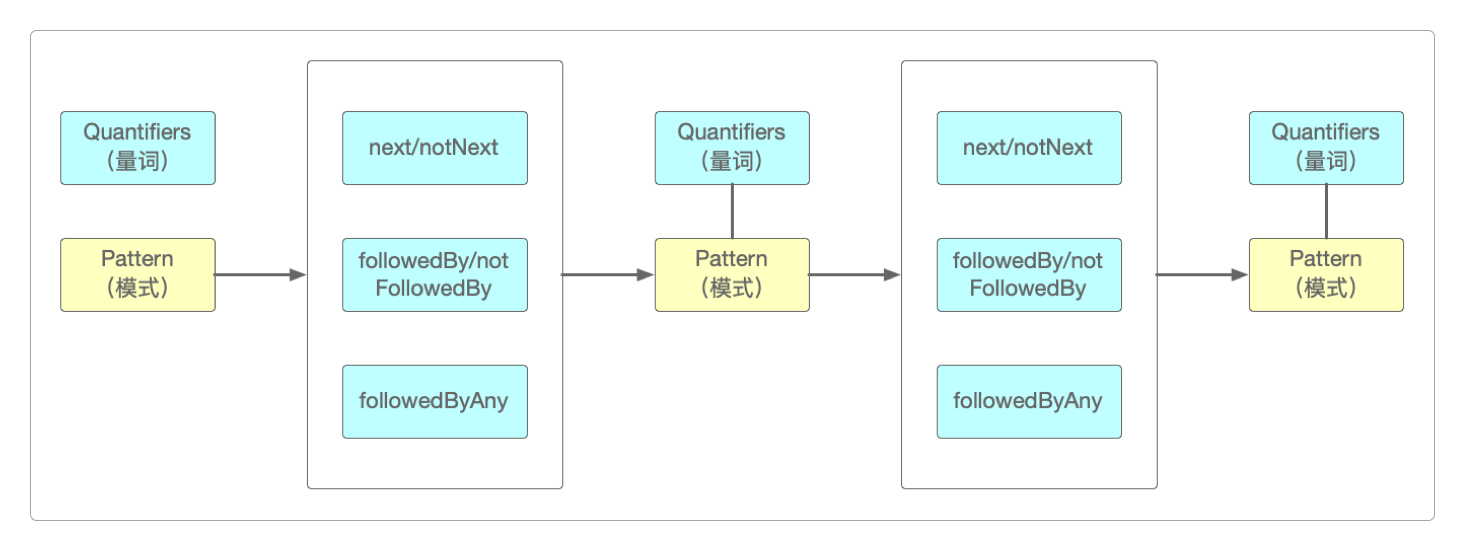

将Pattern串联起来构成逻辑匹配
将Pattern串联起来构成逻辑匹配

如果在程序运行期间，希望能够实时动态地调整风控规则，该怎么做呢？

比较容易想到的是启动一个后台线程周期性地读取MySQL中的规则配置数据，然后通过广播流将规则广播到事件流中去。

但这种方式有延迟，无法做到立即更新规则然后匹配事件——可能刚加载完更新后的规则，事件就已经流走了。

此时，就需要用到Groovy了，之所以选择Groovy，是由于它的下面几个特性。

  • 它是一门动态语言，可以无缝地与Java衔接。

  • 作为脚本型语言，只要改变脚本内容，它就能立即重新加载执行。


运行Groovy程序

运行Groovy程序有三种方式。

  • Groovy Shell：在Java中运行Groovy表达式并计算结果，它每一次执行时都会动态将代码编译成.class文件，性能较差。

  • Groovy Script Engine：可以加载指定位置的Groovy脚本，如文件系统、URL链接、数据库等，并且当脚本内容发生变化时能够动态加载而不必停止服务。

  • Groovy Class Loader：它是一个定制的类加载器，打破了Java的双亲委派模型，负责解释、加载所需要的Groovy类。

Groovy Shell

package groovy;

import groovy.lang.Binding;
import groovy.lang.GroovyShell;

/**
 * GroovyShell运行Groovy脚本
 *
 * 1. Groovy和Java是无缝连接
 * 2. Java应用在运行时集成Groovy的3种方式
 * 1). GroovyShell：每一次执行时会动态将代码编译成Java Class
 *     在Java类中，使用Binding对象输入参数给表达式
 *     缺点：性能较差
 * 2). GroovyScriptEngine：指定位置加载Groovy脚本，并且随着脚本变化而重新加载它们
 * 3). GroovyClassLoader：是一个定制的类加载器，负责解释加载Java类中用到的Groovy类
 *
 * 3. 编写Groovy代码的两种风格：
 * 1). 脚本 (不定义和.groovy同名的class)
 * 2). 类(定义class，所有代码在class)
 *
 * 4. Groovy编译器会将脚本编译为类
 * 如果Groovy脚本文件里只有执行代码，没有定义任何类，那么编译器会生成一个Script的子类
 * 类名和脚本文件的文件名一样，脚本的代码会被包含在一个名为run的方法中
 *
 * 5. 如果Groovy脚本文件有执行代码，并且有定义类，就生成对应的class文件，脚本本身也会被编译成一个Script的子类
 *
 * 6. 如果.groovy文件内部出现了和文件同名的类，则这个.groovy文件会被视作是"用Groovy语言编写的Java代码"
 * 此时不能用作脚本使用，只能看作普通的类
 *
 * 7. JVM双亲委派模型：所有的类都尽可能由顶层的类加载器加载，保证了加载的类的唯一性
 * 由JVM自带的类加载器所加载的类，在JVM的生命周期中，始终不会被卸载
 * 可以自定义类加载器，所加载的类会打破双亲委派模型，不要委托给父类加载器，就能够实现类的动态加载
 *
 * 8. GroovyClassLoader打破双亲委派模型，从而实现了Groovy能够动态加载Class的功能
 *
 * 9. 无论是GroovyShell的evaluate()方法，还是GroovyScriptEngine的run()方法
 * 它们调用的都是GroovyClassLoader中的parseClass()
 *
 */
public class GroovyShellDemo {
    public static void main(String[] args) {
        // groovy 脚本内容
        String groovy_script = "println 'groovy'; println 'name = ' + name;";
        // 初始化 Binding
        Binding binding = new Binding();
        // Groovy Shell传参
        // 使用setVariable
        binding.setVariable("name", "李星云");
        // 创建脚本对象
        GroovyShell shell = new GroovyShell(binding);
        // 执行脚本
        Object variableRes = shell.evaluate(groovy_script);
    }
}

Groovy Script Engine

package groovy;

import groovy.lang.Binding;
import groovy.util.GroovyScriptEngine;
import groovy.util.ResourceException;
import groovy.util.ScriptException;
import java.io.IOException;

/**
 * 通过Groovy Script Engine从指定位置加载Groovy脚本
 *
 */
public class GroovyScriptEngineDemo {
    public static void main(String[] args) throws IOException, ScriptException, ResourceException {
        // 初始化GroovyScriptEngine
        GroovyScriptEngine engine = new GroovyScriptEngine("src/main/resources");
        // 初始化Binding
        Binding binding = new Binding();
        // 执行脚本
        engine.run("engine.groovy", binding);
    }
}

engine.groovy脚本中的内容如下。

package scripts

class User {
}

println('groovy');

Groovy Class Loader

package groovy;

import groovy.lang.GroovyClassLoader;
import groovy.lang.GroovyObject;
import org.codehaus.groovy.control.CompilerConfiguration;
import java.io.File;
import java.io.IOException;

/**
 * 通过类加载器调用Groovy自定义类
 *
 */
public class GroovyClassLoaderDemo {
    public static void main(String[] args) throws ClassNotFoundException, InstantiationException, IllegalAccessException, IOException {
        /*
         * 1. 通过类加载器调用Groovy自定义类步骤
         *
         * 1). 实例化一个GroovyClassLoader的对象
         * 2). GroovyClassLoader 解析groovy脚本并生成一个Class对象
         * 3). 实例化一个GroovyObject
         * 4). 通过GroovyObject执行自定义类中的方法
         *
         */
        // 这个GroovyClassLoader的父加载器是当前线程的类加载器
        GroovyClassLoader loader = new GroovyClassLoader(Thread.currentThread().getContextClassLoader(), new CompilerConfiguration());
        // groovy脚本路径
        File file = new File("src/main/groovy/scripts/ScriptEngine.groovy");
        // 通过GroovyClassLoader加载类
        Class<?> groovyClass = loader.parseClass(file);
        // 获取ScriptEngine对象的实例
        GroovyObject groovyObject = (GroovyObject) groovyClass.newInstance();
        // 通过invokeMethod调用实例方法
        groovyObject.invokeMethod("print", null);
    }
}

ScriptEngine.groovy脚本中的内容如下。

package scripts

class ScriptEngine {
    void print() {
        println('this is Groovy Class By GroovyClassLoader')
    }
}

动态加载Pattern

首先，定义一个可以返回Flink-CEPPattern的接口。

package com.itechthink.risk.flink.job.groovy;

import org.apache.flink.cep.pattern.Pattern;

/**
 * Groovy接口：返回Flink-Cep Pattern的接口
 *
 */
public interface GroovyRule<T> {
    /**
     * 返回Flink-Cep Pattern结构体
     *
     */
    Pattern<T, ?> getPattern();
}

然后，在src/main中创建Groovy的源码目录src/main/groovy，并创建如下代码。

package scripts.cep

import com.itechthink.risk.flink.job.groovy.LoginFailBySingletonCondition
import com.itechthink.risk.flink.job.groovy.GroovyRule
import org.apache.flink.cep.pattern.Pattern
import org.apache.flink.streaming.api.windowing.time.Time

/**
 * Groovy脚本：基于个体模式检测最近1分钟内登录失败超过3次的用户
 *
 */
class LoginFailBySingleton<EventPO> implements GroovyRule<EventPO> {
    @Override
    Pattern getPattern() {
        return Pattern
                .begin("login_fail_first")
                // 将失败条件封装为Aviator自定义函数
                .where(new LoginFailBySingletonCondition("__FIELD__", "__EXP__"))
                .times(4)
                .within(Time.seconds(60))
    }
}

再使用Java调用Groovy脚本。

package com.itechthink.risk.flink.job.cep;

import com.itechthink.risk.flink.utils.GroovyUtil;
import com.itechthink.risk.flink.utils.KafkaUtil;
import com.itechthink.risk.model.EventPO;
import org.apache.flink.api.java.functions.KeySelector;
import org.apache.flink.cep.pattern.Pattern;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.KeyedStream;
import java.io.IOException;

/**
 * 基于个体模式使用Groovy脚本检测最近1分钟内登录失败超过3次的用户
 * CEP模式：允许这3次登录失败事件之间出现其他行为事件
 *
 */
public class LoginFailByGroovy {
    public static void main(String[] args) throws IOException, ClassNotFoundException, InstantiationException, IllegalAccessException {
        // 消费Kafka数据
        DataStream<EventPO> eventStream = KafkaUtil.read(args);

        // 生成KeyedStream
        KeyedStream<EventPO, Integer> keyedStream = eventStream.keyBy(new KeySelector<EventPO, Integer>() {
            @Override
            public Integer getKey(EventPO eventPO) throws Exception {
                return eventPO.getUserid();
            }
        });

        /*
         * 解析Groovy脚本，获取Flink-Cep Pattern结构体
         *
         */
        Pattern<EventPO, ?> pattern = (Pattern<EventPO, ?>) GroovyUtil.groovyEval(clazz, method, null);
    }
}

LoginFailBySingletonCondition.java的代码如下。

package com.itechthink.risk.flink.job.groovy;

import com.googlecode.aviator.AviatorEvaluator;
import com.itechthink.risk.flink.job.aviator.SumFunction;
import com.itechthink.risk.model.EventPO;
import org.apache.flink.cep.pattern.conditions.SimpleCondition;
import java.io.Serializable;
import java.util.HashMap;
import java.util.Map;

/**
 * 登录失败检测条件
 *
 */
public class LoginFailBySingletonCondition extends SimpleCondition<EventPO> implements Serializable {
    /**
     * Aviator字段
     *
     */
    private String field;

    /**
     * 规则表达式
     *
     */
    private String expression;

    public LoginFailBySingletonCondition(String field, String expression) {
        this.field = field;
        this.expression = expression;
        // 加载Aviator自定义函数
        AviatorEvaluator.addFunction(new SumFunction(this.field));
    }

    public boolean filter(EventPO eventPO) throws Exception {
        Map<String, Object> params = new HashMap<>();
        params.put("data", eventPO.getEname());
        // Aviator表达式计算
        return (Boolean) AviatorEvaluator.execute(expression, params);
    }
}

Groovy脚本工具类GroovyUtil.java的代码如下。

package com.itechthink.risk.flink.utils;

import groovy.lang.GroovyClassLoader;
import groovy.lang.GroovyObject;
import groovy.lang.Script;
import org.apache.flink.api.java.utils.ParameterTool;
import org.codehaus.groovy.control.CompilerConfiguration;
import java.io.File;
import java.nio.charset.StandardCharsets;
import java.security.MessageDigest;
import java.util.concurrent.ConcurrentHashMap;

/**
 * Groovy脚本工具类
 *
 */
public class GroovyUtil {
    // 将类加载器GroovyClassLoader创建为单例模式
    private static volatile GroovyClassLoader LOADER;

    // 将Class<Script>保存到map
    private static final ConcurrentHashMap<String, Class<Script>> clazzMaps = new ConcurrentHashMap<String, Class<Script>>();

    private static String GROOVY_ROOT = null;

    static {
        ParameterTool parameterTool = ParameterUtil.getParameters();
        GROOVY_ROOT = parameterTool.get(Constants.GROOVY_SCRIPTS);
    }

    /**
     * 生成Groovy类加载器
     *
     */
    private static GroovyClassLoader getEngineByClassLoader(String key) {
        if (LOADER == null) {
            synchronized (GroovyClassLoader.class) {
                // 双重校验
                if (LOADER == null) {
                    // GroovyClassLoader的父ClassLoader为当前线程的加载器，并添加一个编译配置对象
                    LOADER = new GroovyClassLoader(Thread.currentThread().getContextClassLoader(), new CompilerConfiguration());
                }
            }
        }
        return LOADER;
    }

    /**
     * 生成Groovy脚本代码的md5指纹，作为clazzMaps的key
     *
     */
    private static String fingerKey(String scriptText) {
        try {
            MessageDigest md = MessageDigest.getInstance("MD5");
            byte[] bytes = md.digest(scriptText.getBytes(StandardCharsets.UTF_8));
            final char[] HEX_DIGITS = "0123456789ABCDEF".toCharArray();
            StringBuilder ret = new StringBuilder(bytes.length * 2);
            for (byte aByte : bytes) {
                ret.append(HEX_DIGITS[(aByte >> 4) & 0x0f]);
                ret.append(HEX_DIGITS[aByte & 0x0f]);
            }
            return ret.toString();
        } catch (Exception e) {
            throw new RuntimeException(e);
        }
    }

    /**
     * 解析Groovy脚本
     *
     */
    public static Object groovyEval(String groovyClass, String method, Object args) {
        Object obj = null;
        File file = new File(GROOVY_ROOT + groovyClass + ".groovy");
        String md5 = fingerKey(file.getAbsolutePath());
        // 获取之前解析过的脚本
        Class<Script> script = clazzMaps.get(md5);

        // 判断读取到的脚本是否为null，如果为null，说明之前没有解析过
        if (script == null) {
            try {
                // 生成类加载器解析
                GroovyClassLoader loader = getEngineByClassLoader(md5);
                // 解析脚本
                Class<?> groovyScript = loader.parseClass(file);
                script = (Class<Script>) groovyScript;
                // 保存Class<Script>到map中
                clazzMaps.put(md5, script);
            } catch (Exception e) {
                throw new RuntimeException(e);
            }
        }

        // 之前已经解析过，则直接获取实例
        try {
            GroovyObject groovyObject = script.newInstance();
            // 反射调用方法
            obj = groovyObject.invokeMethod(method, args);
            return obj;
        } catch (Exception e) {
            throw new RuntimeException(e);
        }
    }
}

单元测试

首先，在src/test目录中创建Groovy的源码目录src/test/groovy，并创建如下代码。

package scripts.cep

import com.itechthink.risk.flink.job.groovy.LoginFailBySingletonCondition
import com.itechthink.risk.flink.job.groovy.GroovyRule
import com.itechthink.risk.flink.model.SimpleEventTestPO
import org.apache.flink.cep.pattern.Pattern
import org.apache.flink.streaming.api.windowing.time.Time

/**
 * 单元测试：Groovy脚本加载Pattern
 *
 */
class CepPatternTest implements GroovyRule<SimpleEventTestPO> {
    @Override
    Pattern getPattern() {
        return Pattern
                .<SimpleEventTestPO> begin("fail")
                .where(new LoginFailBySingletonCondition<SimpleEventTestPO>("__FIELD__", "__EXP__"))
                .times(3)
                .within(Time.seconds(60))
    }
}

接着，创建一个用于测试的POJO对象。

package com.itechthink.risk.flink.model;

/**
 * 简单的行为事件POJO对象
 *
 */
public class SimpleEventTestPO {
    /**
     * 事件名称
     *
     */
    private String ename;

    /**
     * 事件发生时间
     *
     */
    private Long etime;

    /**
     * 用户id
     */
    private Integer userid;

    public SimpleEventTestPO(String ename, Long etime, Integer userid) {
        this.ename = ename;
        this.etime = etime;
        this.userid = userid;
    }

    public String getEname() {
        return ename;
    }

    public void setEname(String ename) {
        this.ename = ename;
    }

    public Long getEtime() {
        return etime;
    }

    public void setEtime(Long etime) {
        this.etime = etime;
    }

    public Integer getUserid() {
        return userid;
    }

    public void setUserid(Integer userid) {
        this.userid = userid;
    }
}

然后，创建一个告警输出POJO对象。

package com.itechthink.risk.flink.model;

import java.util.List;

/**
 * Flink-CEP告警POJO对象
 *
 */
public class CepWarnTestPO {
    private String name;

    private List<SimpleEventTestPO> events;

    public CepWarnTestPO(List<SimpleEventTestPO> events, String name) {
        this.events = events;
        this.name = name;
    }

    @Override
    public String toString() {
        StringBuilder builder = new StringBuilder();
        builder.append("规则：").append(name).append(" ");
        int i = 0;
        for (SimpleEventTestPO simpleEventTestPO : events) {
            ++i;
            builder.append("事件").append(i).append(" ")
                    .append("uid:")
                    .append(simpleEventTestPO.getUserid())
                    .append(", 时间:")
                    .append(simpleEventTestPO.getEtime())
                    .append(", 行为:")
                    .append(simpleEventTestPO.getEname())
                    .append("\n");
        }
        return builder.toString();
    }
}

最后，再创建测试类和测试方法。

package com.itechthink.risk.flink.job.cep;

import com.itechthink.risk.flink.model.CepWarnTestPO;
import com.itechthink.risk.flink.model.SimpleEventTestPO;
import com.itechthink.risk.flink.utils.GroovyUtil;
import org.apache.flink.api.common.eventtime.SerializableTimestampAssigner;
import org.apache.flink.api.common.eventtime.WatermarkStrategy;
import org.apache.flink.cep.CEP;
import org.apache.flink.cep.PatternStream;
import org.apache.flink.cep.functions.PatternProcessFunction;
import org.apache.flink.cep.pattern.Pattern;
import org.apache.flink.cep.pattern.conditions.SimpleCondition;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.KeyedStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.windowing.time.Time;
import org.apache.flink.util.Collector;
import org.junit.jupiter.api.DisplayName;
import org.junit.jupiter.api.Test;
import java.time.Duration;
import java.util.List;
import java.util.Map;

/**
 * Flink-CEP单元测试
 *
 */
public class FlinkCepTest {
    /**
     * 公共方法: 水印和分组
     *
     */
    private KeyedStream<SimpleEventTestPO, Integer> getSteam(StreamExecutionEnvironment env, DataStream<SimpleEventTestPO> dataStream) {
        return dataStream
                // 必须生成水印
                .assignTimestampsAndWatermarks(
                        WatermarkStrategy
                                // 最大的数据延迟时间
                                .<SimpleEventTestPO>forBoundedOutOfOrderness(Duration.ZERO)
                                // 事件流的每个事件元素设置时间戳
                                .withTimestampAssigner(new SerializableTimestampAssigner<SimpleEventTestPO>() {
                                    @Override
                                    public long extractTimestamp(SimpleEventTestPO event, long l) {
                                        return event.getEtime();
                                    }
                                }))
                .keyBy(SimpleEventTestPO::getUserid);
    }

    @DisplayName("测试基于Flink-Cep循环模式检测登录失败超过3次的用户")
    @Test
    void testLoginFailByCep() throws Exception {
        // 流式计算上下文环境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);
        // 生成事件流
        DataStream<SimpleEventTestPO> dataStream = env.fromElements(
                new SimpleEventTestPO("fail", 2000L, 1),
                new SimpleEventTestPO("fail", 3000L, 1),
                new SimpleEventTestPO("fail", 4000L, 2),
                new SimpleEventTestPO("fail", 5000L, 1),
                new SimpleEventTestPO("fail", 6000L, 2),
                new SimpleEventTestPO("fail", 7000L, 2),
                new SimpleEventTestPO("fail", 8000L, 3)
        );
        // 根据uid分组
        KeyedStream<SimpleEventTestPO, Integer> stream = getSteam(env, dataStream);
        // 定义Pattern
        Pattern<SimpleEventTestPO, SimpleEventTestPO> pattern = Pattern.<SimpleEventTestPO>begin("cep-login-fail")
                .where(new SimpleCondition<SimpleEventTestPO>() {
                    @Override
                    public boolean filter(SimpleEventTestPO value) throws Exception {
                        return value.getEname().equals("fail");
                    }
                }).times(3);
        // 将Pattern应用到事件流
        PatternStream<SimpleEventTestPO> patternStream = CEP.pattern(stream, pattern);
        // 提取匹配事件
        patternStream.process(new PatternProcessFunction<SimpleEventTestPO, String>() {
                    @Override
                    public void processMatch(Map<String, List<SimpleEventTestPO>> map, Context context, Collector<String> collector) throws Exception {
                        // 提取三次登录失败事件
                        List<SimpleEventTestPO> list = map.get("cep-login-fail");
                        SimpleEventTestPO first = list.get(0);
                        SimpleEventTestPO second = list.get(1);
                        SimpleEventTestPO third = list.get(2);
                        StringBuilder builder = new StringBuilder();
                        builder
                                .append("uid:")
                                .append(first.getUserid())
                                .append(", 登录失败时间:")
                                .append(first.getEtime())
                                .append(",")
                                .append(second.getEtime())
                                .append(",")
                                .append(third.getEtime());
                        collector.collect(builder.toString());
                    }
                })
                .print("warning");
        env.execute();
    }

    @DisplayName("测试基于Flink-Cep循环模式检测连续事件的用户")
    @Test
    void testLoginFailConsecutiveByCep() throws Exception {
        // 流式计算上下文环境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);
        // 生成事件流
        DataStream<SimpleEventTestPO> dataStream = env.fromElements(
                new SimpleEventTestPO("fail", 2000L, 1),
                new SimpleEventTestPO("register", 3000L, 1),
                new SimpleEventTestPO("fail", 4000L, 1),
                new SimpleEventTestPO("success", 5000L, 1),
                new SimpleEventTestPO("fail", 6000L, 2),
                new SimpleEventTestPO("fail", 7000L, 2),
                new SimpleEventTestPO("success", 8000L, 3)
        );
        // 根据uid分组
        KeyedStream<SimpleEventTestPO, Integer> stream = getSteam(env, dataStream);
        // 定义Pattern
        Pattern<SimpleEventTestPO, SimpleEventTestPO> pattern =
                Pattern
                        .<SimpleEventTestPO>begin("cep-login-fail-consecutive")
                        .where(new SimpleCondition<SimpleEventTestPO>() {
                            @Override
                            public boolean filter(SimpleEventTestPO value) throws Exception {
                                return value.getEname().equals("fail");
                            }
                        })
                        //times是等于阈值
                        .times(2)
                        //严格紧邻(连续事件)
                        .consecutive();
        // 将Pattern应用到事件流
        PatternStream<SimpleEventTestPO> patternStream = CEP.pattern(stream, pattern);
        // 提取匹配事件
        patternStream.process(new PatternProcessFunction<SimpleEventTestPO, String>() {
                    @Override
                    public void processMatch(Map<String, List<SimpleEventTestPO>> map, Context context, Collector<String> collector) throws Exception {
                        // 提取事件
                        List<SimpleEventTestPO> event = map.get("cep-login-fail-consecutive");
                        CepWarnTestPO warn = new CepWarnTestPO(event, "连续登录失败");
                        collector.collect(warn.toString());
                    }
                })
                .print("warning");
        env.execute();
    }

    @DisplayName("测试基于Flink-Cep组合模式检测连续事件的用户")
    @Test
    void testLoginFailConsecutiveWithCompositeByCep() throws Exception {
        // 流式计算上下文环境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);
        // 生成事件流
        DataStream<SimpleEventTestPO> dataStream = env.fromElements(
                new SimpleEventTestPO("fail", 2000L, 1),
                new SimpleEventTestPO("register", 3000L, 1),
                new SimpleEventTestPO("fail", 4000L, 2),
                new SimpleEventTestPO("success", 5000L, 1),
                new SimpleEventTestPO("fail", 6000L, 2),
                new SimpleEventTestPO("success", 7000L, 2),
                new SimpleEventTestPO("success", 8000L, 3)
        );
        // 根据uid分组
        KeyedStream<SimpleEventTestPO, Integer> stream = getSteam(env, dataStream);
        // 定义Pattern
        Pattern<SimpleEventTestPO, SimpleEventTestPO> pattern =
                Pattern
                        .<SimpleEventTestPO>begin("cep-login-first")
                        .where(new SimpleCondition<SimpleEventTestPO>() {
                            @Override
                            public boolean filter(SimpleEventTestPO value) throws Exception {
                                return value.getEname().equals("fail");
                            }
                        })
                        //严格紧邻 (连续事件)
                        //.next("cep-login-second")
                        //松散紧邻 (非连续事件)
                        .followedBy("cep-login-second")
                        .where(new SimpleCondition<SimpleEventTestPO>() {
                            @Override
                            public boolean filter(SimpleEventTestPO value) throws Exception {
                                return value.getEname().equals("success");
                            }
                        })
                        .within(Time.seconds(10));
        // 将Pattern应用到事件流
        PatternStream<SimpleEventTestPO> patternStream = CEP.pattern(stream, pattern);
        // 提取匹配事件
        patternStream.process(new PatternProcessFunction<SimpleEventTestPO, String>() {
                    @Override
                    public void processMatch(Map<String, List<SimpleEventTestPO>> map, Context context, Collector<String> collector) throws Exception {
                        // 提取事件
                        List<SimpleEventTestPO> first = map.get("cep-login-first");
                        List<SimpleEventTestPO> second = map.get("cep-login-second");
                        CepWarnTestPO warn1 = new CepWarnTestPO(first, "登录失败");
                        CepWarnTestPO warn2 = new CepWarnTestPO(second, "登录成功");
                        collector.collect(warn1.toString());
                        collector.collect(warn2.toString());
                    }
                })
                .print("warning");
        env.execute();
    }

    @DisplayName("测试使用Groovy脚本加载Pattern")
    @Test
    void testLoginFailByGroovy() throws Exception {
        // 流式计算上下文环境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);
        // 生成事件流
        DataStream<SimpleEventTestPO> dataStream = env.fromElements(
                new SimpleEventTestPO("fail", 2000L, 1),
                new SimpleEventTestPO("fail", 3000L, 1),
                new SimpleEventTestPO("fail", 4000L, 2),
                new SimpleEventTestPO("fail", 5000L, 1),
                new SimpleEventTestPO("fail", 7000L, 2),
                new SimpleEventTestPO("fail", 8000L, 2),
                new SimpleEventTestPO("success", 6000L, 2)
        );
        // 根据uid分组
        KeyedStream<SimpleEventTestPO, Integer> stream = getSteam(env, dataStream);
        Pattern<SimpleEventTestPO, SimpleEventTestPO> pattern = (Pattern<SimpleEventTestPO, SimpleEventTestPO>) GroovyUtil.groovyEval("CepPatternTest", "getPattern", null);
        PatternStream<SimpleEventTestPO> patternStream = CEP.pattern(stream, pattern);
        // 匹配事件提取
        patternStream.process(
                        new PatternProcessFunction<SimpleEventTestPO, String>() {
                            @Override
                            public void processMatch(Map<String, List<SimpleEventTestPO>> map, Context context, Collector<String> collector) throws Exception {
                                List<SimpleEventTestPO> event = map.get("fail");
                                CepWarnTestPO warn = new CepWarnTestPO(event, "从Groovy加载Pattern");
                                collector.collect(warn.toString());
                            }
                        })
                .print("warning");
        env.execute();
    }
}


感谢支持

更多内容，请移步《超级个体》。
