容器bridge网络

添码座原创大约 2 分钟

创建两个测试用的Docker容器。

> docker run -d --rm --name box1 busybox /bin/sh -c "while true; do sleep 3600; done"
> docker run -d --rm --name box2 busybox /bin/sh -c "while true; do sleep 3600; done"

容器与宿主机通信

将Docker的80端口映射到虚拟机（宿主机）的8080端口。

> docker run -d -p 8080:80 nginx

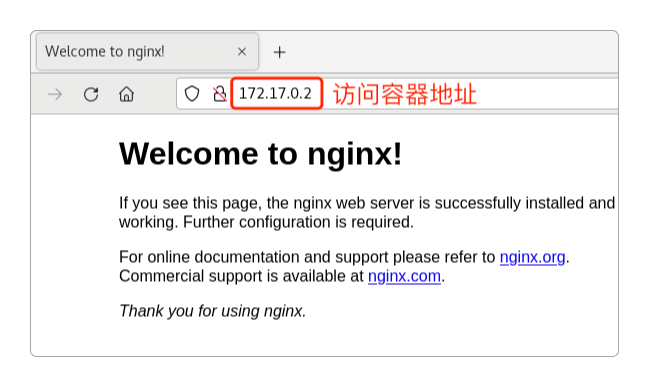

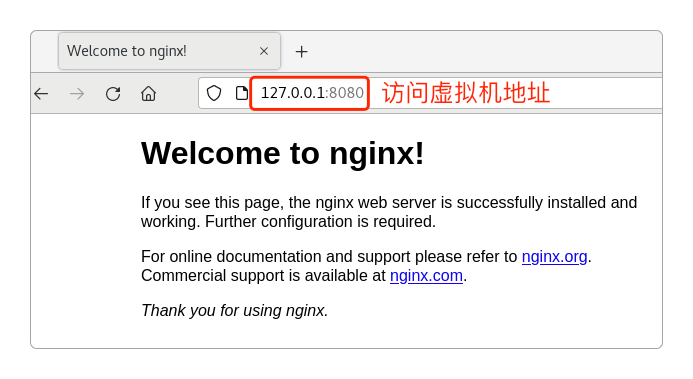

执行后，用浏览器访问Docker的80端口和虚拟机的8080端口都可以成功。

容器间通信

查看Docker所有的网络驱动。

> docker network ls
NETWORK ID     NAME      DRIVER    SCOPE
44a919081dab   bridge    bridge    local
6cd9d1f47762   host      host      local
9a820ca02193   none      null      local

查看bridge网络详情。

> docker network inspect bridge
[
    {
        "Name": "bridge",
        "Id": "44a919081dabb38a56526a18b5309dfd4426ac868bf4f513601f3a324c3b8a0e",
        "Created": "2024-01-15T10:31:30.660876279+08:00",
        "Scope": "local",
        "Driver": "bridge",
        "EnableIPv6": false,
        "IPAM": {
            "Driver": "default",
            "Options": null,
            "Config": [
                {
                    "Subnet": "172.17.0.0/16",
                    "Gateway": "172.17.0.1"
                }
            ]
        },
        "Internal": false,
        "Attachable": false,
        "Ingress": false,
        "ConfigFrom": {
            "Network": ""
        },
        "ConfigOnly": false,
        "Containers": {
            "09de14c41ceef4ccd5b2cf626098e3e2800b0797432f5ae7e028f610bbc409bf": {
                "Name": "box1",
                "EndpointID": "9f8804b90e1f94885b857890fb0664662254c619ef10b8bd205d0ae34926a7bb",
                "MacAddress": "02:42:ac:11:00:03",
                "IPv4Address": "172.17.0.3/16",
                "IPv6Address": ""
            },
            "67d4b34beb1b6c1a5a65fc79af3080abab1315b9ede6305cc64237d8587270ba": {
                "Name": "web2",
                "EndpointID": "9f3760de529e6b978cd8a35235e114d6b5e1844f379b5afd8da2fc532b990e6d",
                "MacAddress": "02:42:ac:11:00:05",
                "IPv4Address": "172.17.0.5/16",
                "IPv6Address": ""
            },
            "b167402a1593ca45a2ff5b78308962795c6d36fc161c7142942af2832d04fda0": {
                "Name": "web1",
                "EndpointID": "eb548a199e55a27d19ea7f5192541b230a09cd9fd9b16c9b8feac9bfd971f8ae",
                "MacAddress": "02:42:ac:11:00:02",
                "IPv4Address": "172.17.0.2/16",
                "IPv6Address": ""
            },
            "b72dc03736ea4556ea941ef344a2c1e5d622740e0bf1a52ab55be8c3623c3df2": {
                "Name": "box2",
                "EndpointID": "b7fdb0560dcc10a04402c725d67a5b2bfca8d539196a0e8b9472149a7f8387f3",
                "MacAddress": "02:42:ac:11:00:04",
                "IPv4Address": "172.17.0.4/16",
                "IPv6Address": ""
            }
        },
        "Options": {
            "com.docker.network.bridge.default_bridge": "true",
            "com.docker.network.bridge.enable_icc": "true",
            "com.docker.network.bridge.enable_ip_masquerade": "true",
            "com.docker.network.bridge.host_binding_ipv4": "0.0.0.0",
            "com.docker.network.bridge.name": "docker0",
            "com.docker.network.driver.mtu": "1500"
        },
        "Labels": {}
    }
]

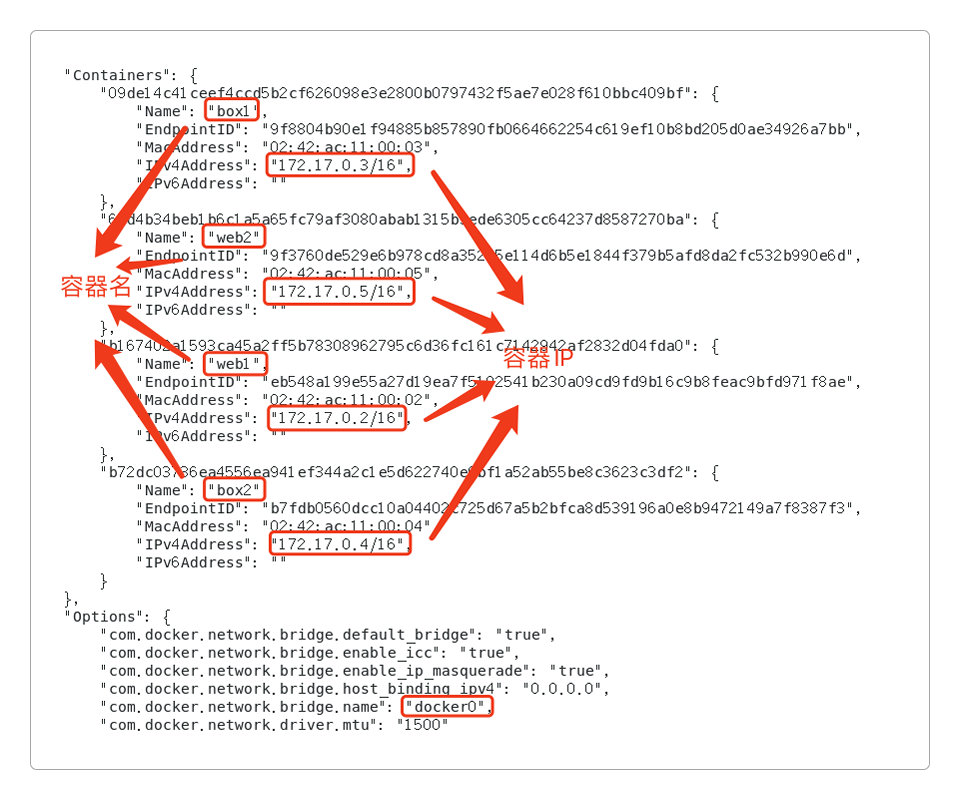

所有的容器名及IP都在network所显示的详情里。

执行brctl show命令。

> brctl show
bridge name		bridge id						STP enabled			interfaces
docker0				8000.024266e4991b		no							veth024a13f
																									veth3e0537b
																									vethaf0d0de
																									vethe8623ea
virbr0				8000.5254002435e0		yes							virbr0-nic

上面veth024a13f、veth3e0537b、vethaf0d0de、vethe8623ea、virbr0-nic等都是网络驱动的接口。

所有容器都能够互相ping通。

容器对外通信

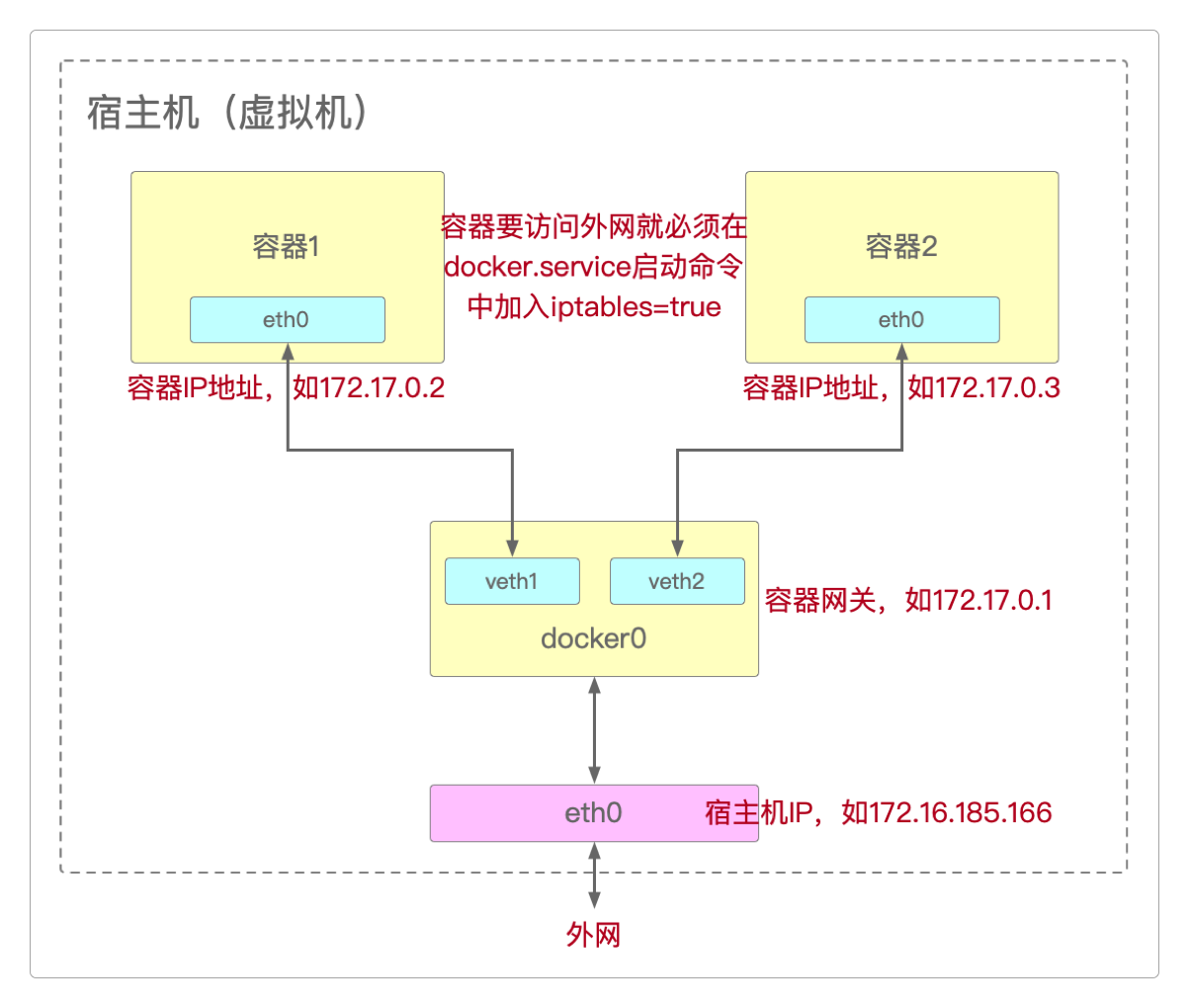

Docker容器的网络拓扑图如下。

造成Docker内部无法访问外网的主要原因是：由于有的Docker是通过yum install安装的，所以有些参数可能会读取一些预定义的包环境变量中的数值，而其中比较关键的一个数值就是iptables。

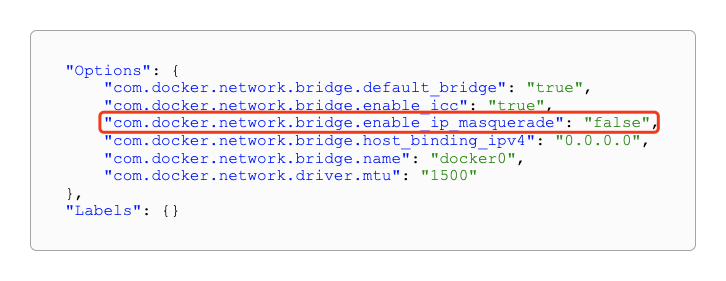

它会造成另一个参数值为false，即com.docker.network.bridge.enable_ip_masquerade，这个参数表示是否开启IP伪装，false代表未开启。

因此需要将iptables修改为true。

具体做法是：找到docker.service守护进程，在Docker启动命令最后添加—iptables=true。

> systemctl status docker.service
● docker.service - Docker Application Container Engine
   Loaded: loaded (/usr/lib/systemd/system/docker.service; enabled; vendor preset: disabled)
   Active: active (running) since 六 2022-10-17 17:02:19 CST; 6min ago
     Docs: https://docs.docker.com
 Main PID: 121185 (dockerd)
    Tasks: 13
   Memory: 40.3M
   CGroup: /system.slice/docker.service
           └─121185 /usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock --iptables=true

找到docker.service服务的路径为/usr/lib/systemd/system/docker.service。

> vi /usr/lib/systemd/system/docker.service

# 将这一行
ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock
# 修改为如下内容
ExecStart=/usr/bin/dockerd -H tcp://0.0.0.0:2375 -H unix:///var/run/docker.sock -H fd:// --containerd=/run/containerd/containerd.sock --iptables=true

保存修改后接着执行。

> systemctl daemon-reload
> systemctl restart docker

此时在容器内部就能ping通外网了。
